Savema Thermal Transfer Printer - SVM 53 C / SVM 53-70 I

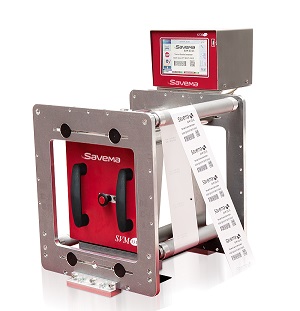

oritronic savema thermal transfer printer SVM53C SVM53 70i

  1. Patented long life mechanical design needs no maintenance
  2. 53mm x 70mm print area for intermittent and 53x125 mm for continuous
  3. 600m ribbon capacity
  4. Print Quality 300dpi (12 dot / inch)
  5. Up to 650mm per second print speeds
  6. The USB can be used to:
    - Move messages and configurations between printers for local based set-up
    - Back-up and restore messages and printer settings
  7. Large memory for all label formats to be stored locally
Item/Model 53-70 I 53 C
Print Area Width 53mm Width 53mm
Length 70mm Length 125mm
Resolution 12 dots/mm (300dpi) horizontally and vertically
Print Speed Up to 450mm/second Up to 650mm/second
Production 350 prints/min (in one line) 500 prints/min
Thermal Ribbon 600 meter (656 yds.) loaded ribbon
Memory 5000 text memory (USB standard)
Power Supply 110/220/240V     50/60Hz
Air Supply min. 1 bar - max. 4 bar
Weight (Printer) 9.4kg
Dimensions 180mm (H) x 215mm (W) x 210mm (D)
Outputs Machine on error (failsafe) - image ready, power on, print per minute etc.
Ribbon Widths 22mm & 35mm - 55mm (0.9" - 1.4", 2.2")
Operating Temperature 5°C - 50°C (41°F - 104°F)
Control Panel 7" touch screen panel
Programming
Fields Real DATE/Time, Text, Barcode, 2D Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency
Barcodes 1D Barcodes, 2D Barcodes, Datamatrix, EAN-8, EAN-13, EAN-128, CODE 128, CODE 39, 1-2 of 5, Code 93, CODE BAR DUN 14, ISBN, UPC-A, UOC-E
2D Datamatrix, QR Code, AZTEC Code, PDF 417
Communications RS-232 (PC), LAN/Multi language (12) support standard
PC Programmes SAYASIS Label Program
